The spray booth is the technological core of modern industrial coating lines. The right powder coating booth for a manufacturer is the key to producing high-quality surfaces while ensuring safe production. A poorly designed system can lead to hidden costs such as excessive powder waste, equipment failure, and safety risks. Colin, with over 15 years of experience in the industry, sets out a comprehensive checklist to help choose the right spray booth for your coating operations to make them safer, cleaner, and more efficient.
The environment in a powder coating booth determines the look and function of parts that are sprayed using electrostatic spraying. To achieve a mirror finish, all variables in the booth must be brought under total control.

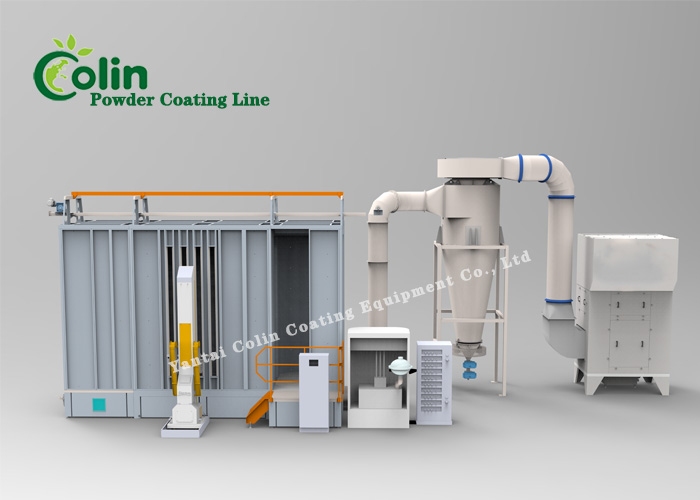

A high-quality spray booth is a controlled workspace; outside air is filtered to keep dust and other airborne contaminants from entering the coating area. For most applications, clean air is circulated into the booth. For automotive parts finishers and high-end furniture manufacturers, where microscopic particles can cause finish defects that require costly rework, a pristine internal atmosphere is guaranteed, allowing for a smooth finish every time.
Airflow design is one of the most important yet often overlooked factors in powder coating booth design. Optimized airflow ensures smooth powder delivery from the spray guns without turbulence. The air flows in a stable way without any turbulence, which could cause the characteristic “orange peel” effect or an uneven layer thickness. For complex objects, special attention has to be paid to the airflow in order to achieve a uniform coating and to reach recessed areas effectively in order to achieve complete and uniform protection.
In industrial environments, ensuring operational safety is a top priority. For a powder spray booth, several safety measures need to be implemented in order to minimize the risk of dust explosions and electrical discharges.
Powder coatings pose a significant explosion risk when suspended in high concentrations. A reliable powder spray booth utilizes a sophisticated mechanical ventilation system to keep internal powder suspension levels below the lower explosive limit, typically required to be under 10g/m³. By maintaining this threshold, the risk of combustion is eliminated at the source. Furthermore, these systems should be equipped with explosion-proof lighting and monitoring sensors to ensure the workspace remains within safe operating parameters at all times.
Electrostatic discharge is a leading cause of fires in coating facilities. Therefore, every powder spray booth must feature a comprehensive electrostatic grounding system. This ensures that the entire structure, including the workpiece and the recovery system, is properly grounded to prevent sparks. Essential safety components include:
Efficiency within a spray booth refers to the use of powder coating materials in production and the best use of time on the production shifts in order to maintain high levels of efficiency and conserve materials to complete quality work.
The utilization of material is typically the largest component of the operational costs in a Powder Coating facility. With a high-end spray booth equipped with a high-efficiency recovery system using cyclone separators and cartridge-style filters, a manufacturer can effectively capture and reuse the overspray. Current systems have the ability to reclaim powder at a rate of over 99%, at which time the powder can be re-sold as a cost-effective material, allowing for a fast return on investment and helping to provide an eco-friendly production environment.
In today’s more flexible manufacturing environments, the ability to quickly change colors to meet customer demands is critical to remaining competitive. Modern spray booths are designed to allow for quick clean-up between color changes as opposed to older booths that can take hours to clean. Colin’s design for a powder coating spray booth uses modular spray rooms with a multi-powder supply center. The booth is made of the toughest durable materials, such as stainless steel for the booth walls, allowing for a smooth surface that can be easily cleaned. A full color change, including the spray booth, powder supply, and guns, can be accomplished in as little as 15 to 30 minutes.
Choosing the correct powder paint booth is crucial and requires research in order to find the correct equipment to meet your production requirements. Below is a checklist to help you find the correct equipment.
The size and complexity of your product will determine how your booth is set up. These are some things to consider.
Determine the level of automation that fits your budget and your throughput requirements. There are manual lines up to fully automated systems, including PLC control and spraying robots. While manual lines are great for small production lots and have a high degree of flexibility, automatic powder paint booth systems can be 3-5 times as efficient and guarantee consistent results for large volume production. In order to avoid the equipment becoming obsolete too early, it is crucial to determine your current and future production volume.

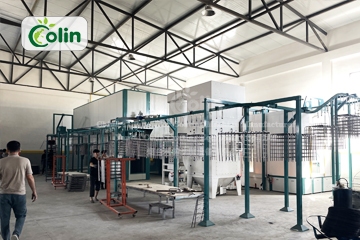

A booth is only as good as the support behind it. Choose a partner, like Colin, who can offer you:
Powder paint booths that perform at the highest level are not only safe, environmentally responsible, and deliver exceptional finish quality, but will also deliver a host of benefits that deliver real cost savings. Choosing a powder paint booth supplier with extensive technical knowledge will ensure you are best placed in the changing industrial landscape.
Are you ready to optimize your production line? Please contact us; Colin would be pleased to hold a professional consultation with you.
A: Completing a full color change for production lines set up with modular spray rooms and multi-powder supply systems, including cleaning the spray booth, the powder supply system, and the guns, can typically take between 15 and 30 minutes.
A: High-quality systems from Colin achieve a powder recovery rate of over 99% by using advanced cyclone separators and cartridge filters to minimize waste of the material being used.
A: The mechanical ventilation is dimensioned in such a way that the concentration of the powder at all points is below 10g/m³ in order to prevent an explosion. The powder is conductively connected to earth by means of integrated electrostatic grounding and by emergency stop switches.
A: Yes. Colin provides professional customization by designing the optimal spraying solution based on specific workpiece materials like aluminum, as well as shape complexity and production volume.
